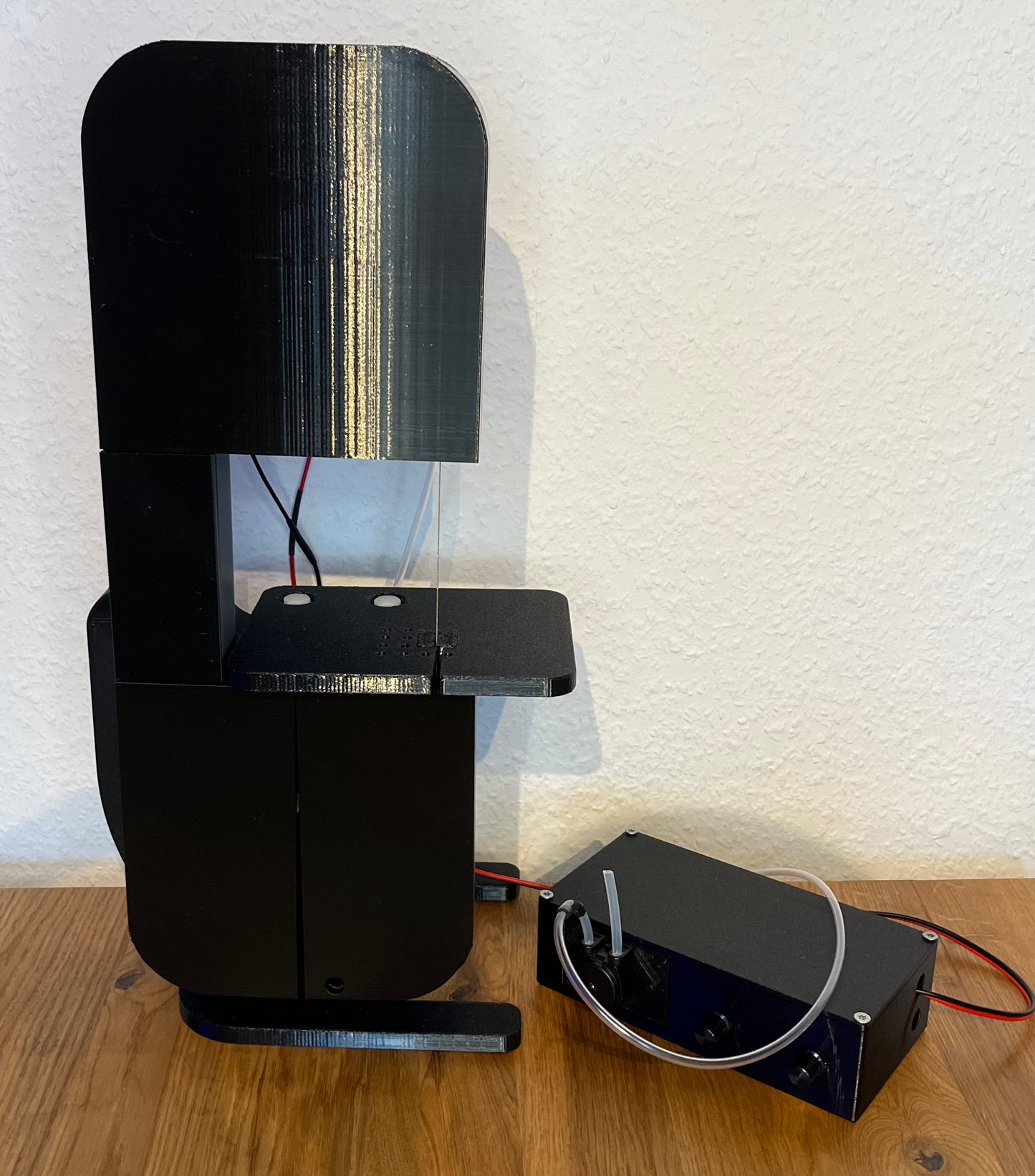

Coral saw frame kit

With the Bucket frame kit for a coral saw, you can easily and cost-effectively assemble a coral saw for hobby aquarists on their own responsibility.

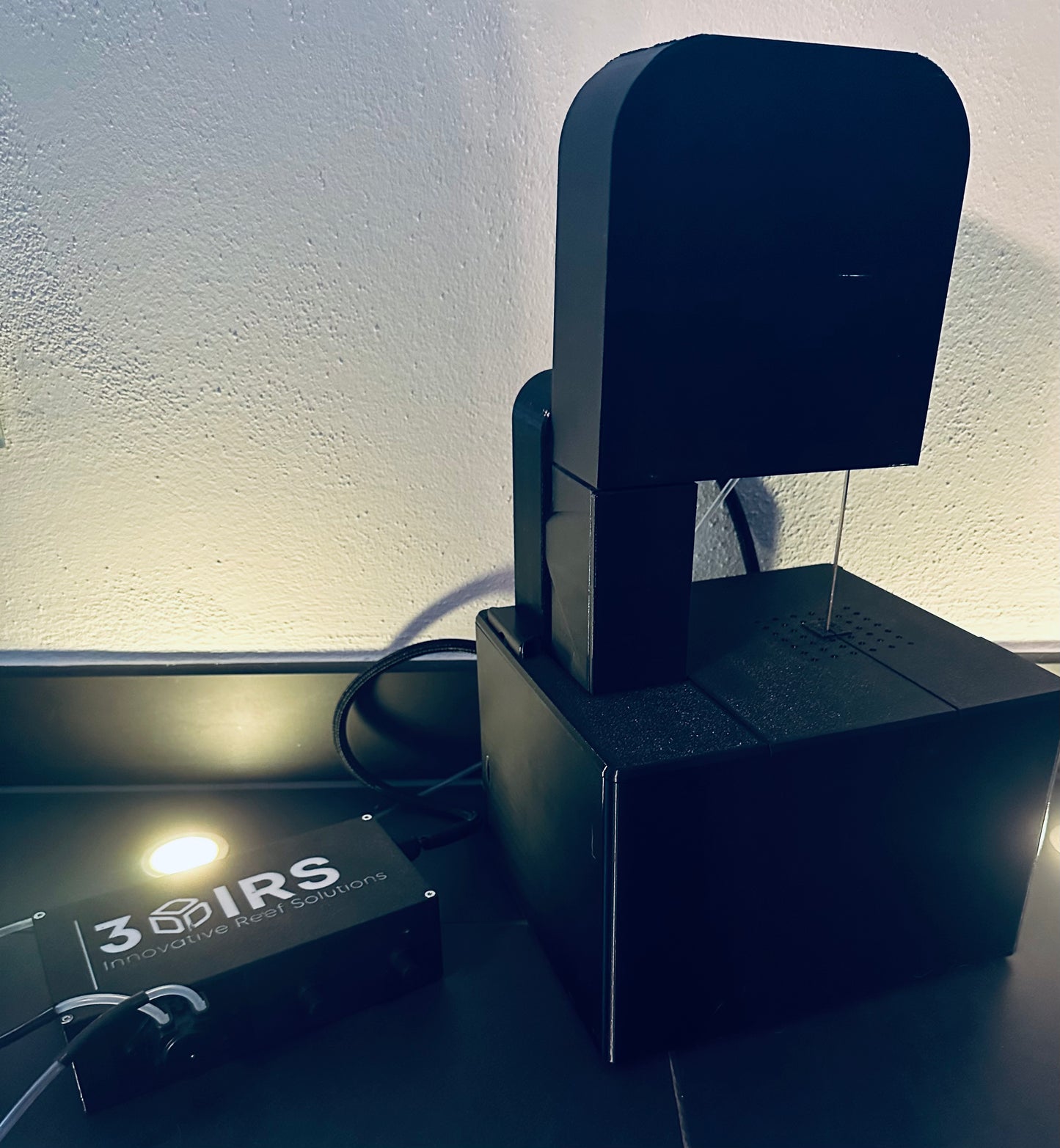

The new version relies on the proven construction of the frame kit in the "Slim" version and now also has a larger collecting container directly under the saw. It is also possible to fill in the cooling water directly there. The dosing pump for cooling can be omitted in order to further reduce the final price. However, more precise coolant dosing can still be achieved by installing a dosing pump.

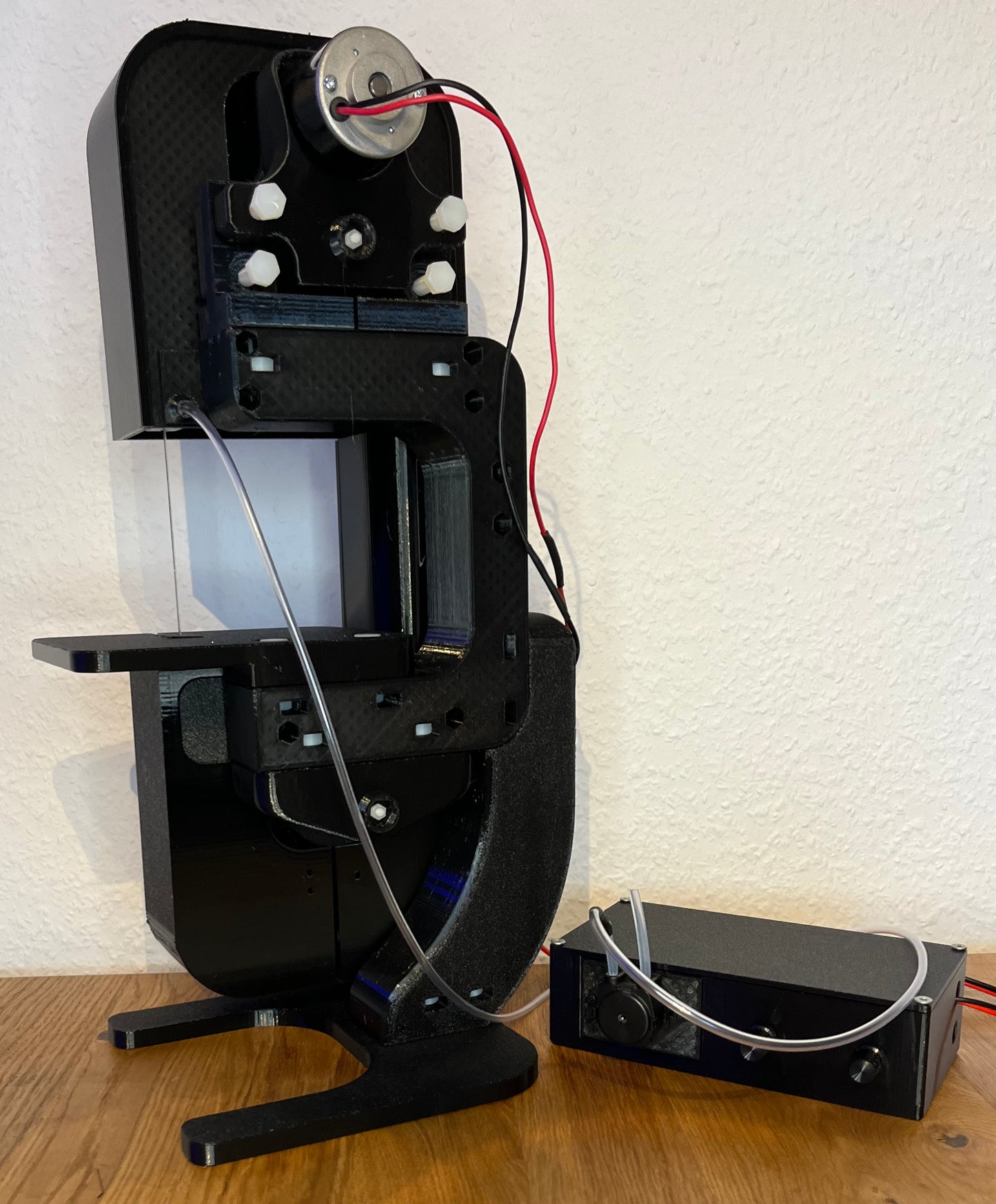

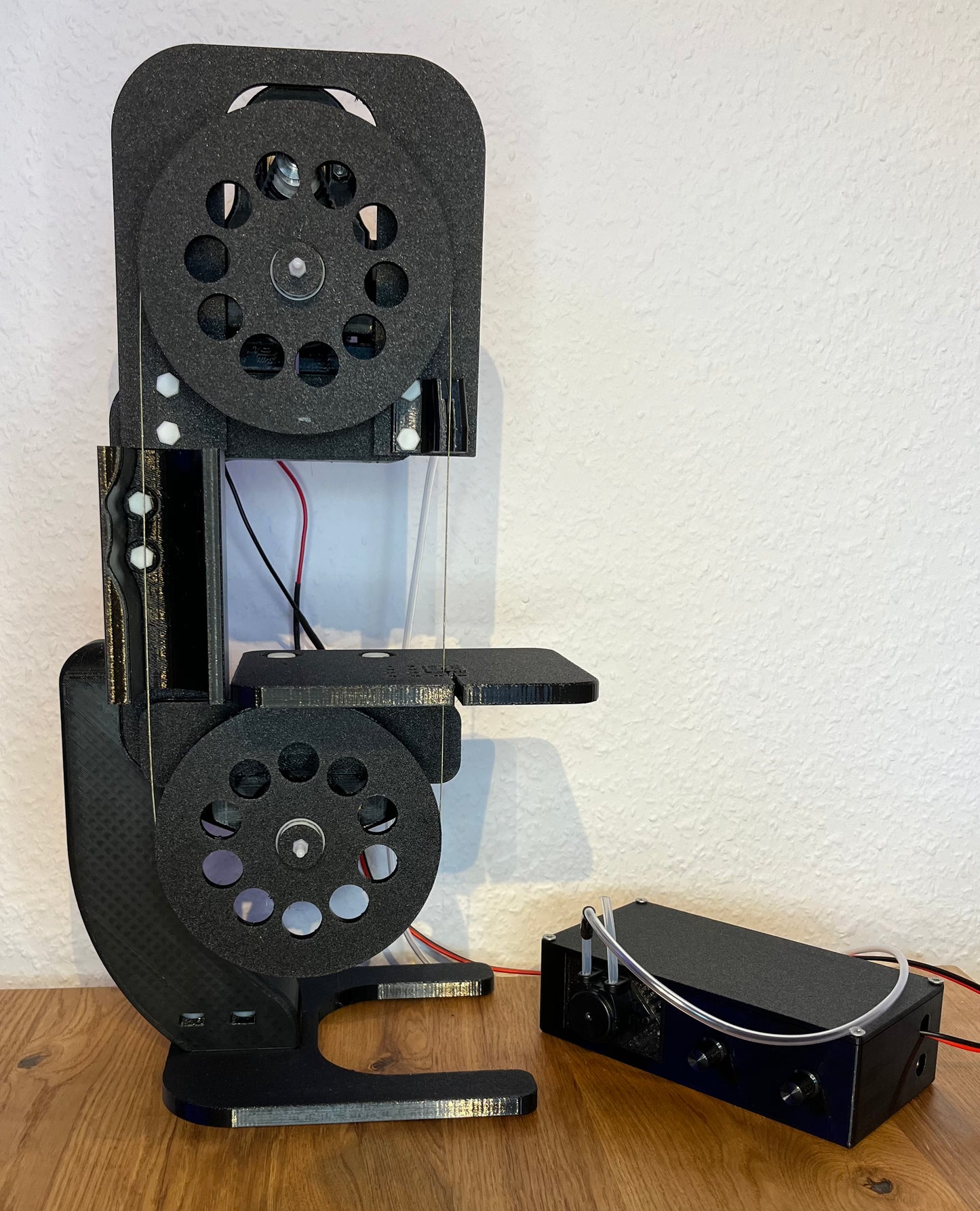

The frame kit consists of a variety of 3D printed components that are assembled using the included polyamide screws . Also included are polymer ball bearings from Igus © for the wheels. This results in a frame that does not contain any metal and therefore cannot rust when it comes into contact with salt water.

Scope of delivery:

- 3D printed parts
- Polyamide screws with nuts for joining the frame (22 x M8, 6 x M6)
- 4 ball bearings Igus© 6802

Recommendation for additionally required components:

1. Motor design XD 3420 short shaft in 12/24V
2. PWM controller 12/24V with wattage matching the motor
3. Dosing pump head similar to Kamoer (optional)
4. Power supply 12/24V with DC connector
5. Diamond band saw blade 958mm or 37.7 x 1/8 inch
6. HTD 3M belt 9mm 73 teeth or adapted to the sprocket
7. Motor pinion 14 teeth 9mm bore 8 mm or suitable for the drive
8. Hose 3/5 mm for saw blade cooling (optional)
9. Cable for extending the motor and other wiring

It should be noted that the assembly instructions are here can be found and will not be shipped. We recommend checking the assembly instructions in advance to avoid incorrect assembly.

3D printed parts are not 100% waterproof. Therefore, make sure you have a suitable base.

A compilation of links for the components provided by a customer here to find. We assume no responsibility or guarantee for the links.
